ABB 2CPX037811R9999

ED62SA

ED62SA Combination Set 2F.Busbar

Description

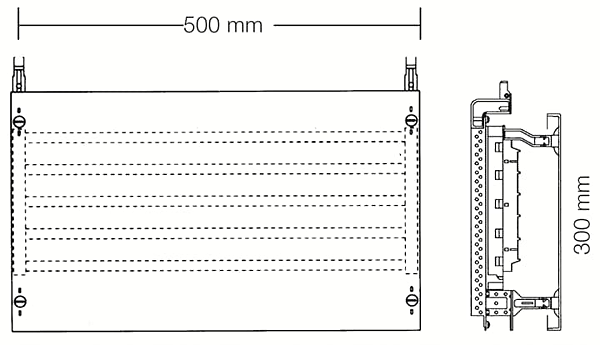

Interior fitting system, Combi-Sets, mounted on EDF-Profile, for busbars, Ratchet unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, with busbar system 5-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, with 5 Cu busbars, rated current maximum 360 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, usuable as of the cabinet depth of 200 mm, combination sets are plugged into the distributor panel at the top or bottom, and mounted on the other side of the cabinet. The EDF profiles and field connectors are included in the scope of delivery.
