ABB 2CPX035894R9999

KS304Z

KS304Z Meter Cabinet Compl. A47

Description

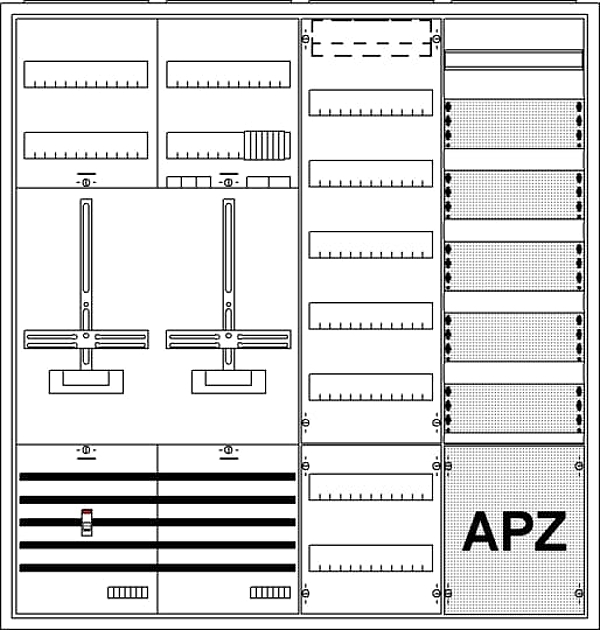

Meter board, series ComfortLine A, fully assembled cabinet, with Metering cross, Expansion option: Lateral, for the internal use, with Door, class of protection II (double insulated), degree of protection IP31, IK code 07, rated current 63 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door out of sheet steel, with Standard closure, door opening angle 120 degree, door hinge right and left, rear wall out of sheet steel / plastic, cable entry on top via membrane flange mounted, on bottom via 2x cable entry flange included, on side via flange opening pre-punched, rear wall cable entry part is pre-punched, dimensions in mm (H x W x D): 1100 x 1050 x 215, Metering module pre-wired, Earthing system TN-S, also suitable for TT-System, 5-pole, Direct connection, net side compartment, meter space: with busbar, pre-assembled for main switch SH, Terminal for control wiring 7-pole quick connection, net side compartment, SG space: with busbar, incoming terminals up to 35 mm², system side compartment, meter space: with Main branch terminal, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of communication fields 1, Number of distributor rows 7, Ratchet unit 7 GU, Overall height 3, panel width 4, Space units 336, covers out of Plastic, 90 degree press and turn closure, RAL 7035
