2CPX035656R9999
KA2412

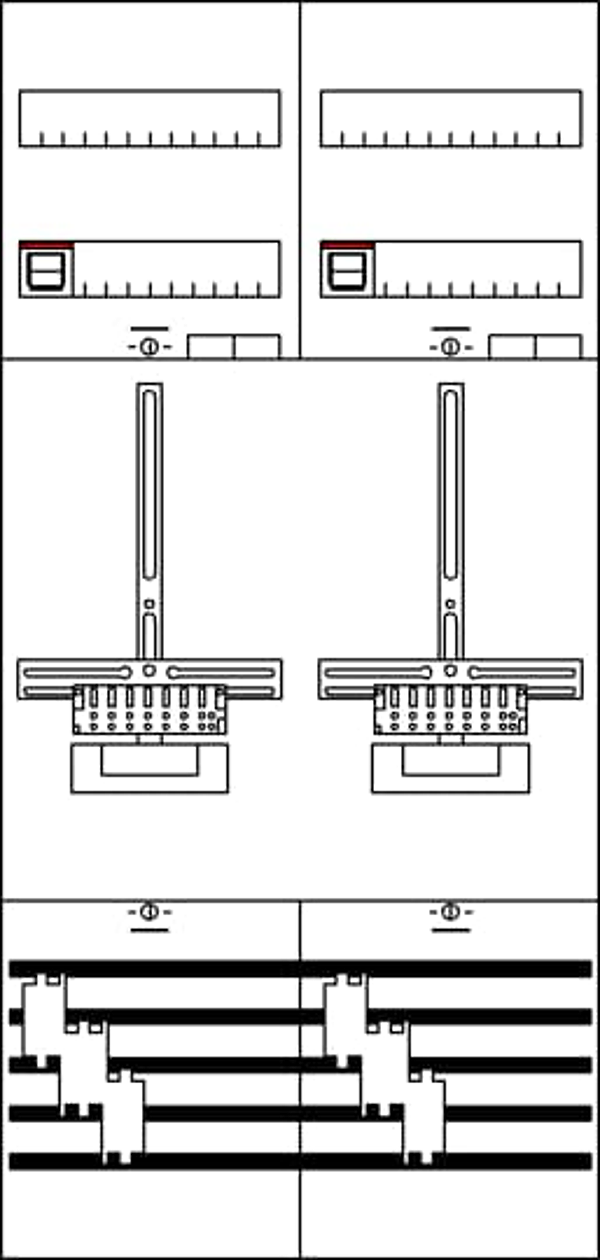

KA2412 Meter Board Compl. 7R
Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with Metering cross, rated current 63 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Metering module pre-wired, Earthing system TN-S, 5-pole, with metering quick termin and sealable cover, net side compartment, meter space: with busbar, with NH00-single fuse protection, net side compartment, SG space: with busbar, system side compartment, meter space: Switch 63 A/3-pole lockable and main branch terminal, Number of meter spaces single tariff 2, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, 90 degree press and turn closure, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617356561 |
Weight: | 12.14 kg |
Length: | 1.06 m |
Width: | 0.50 m |
Height: | 0.14 m |
