2CPX034199R9999
KA3295
KA3295 Meter Board Compl. 7R

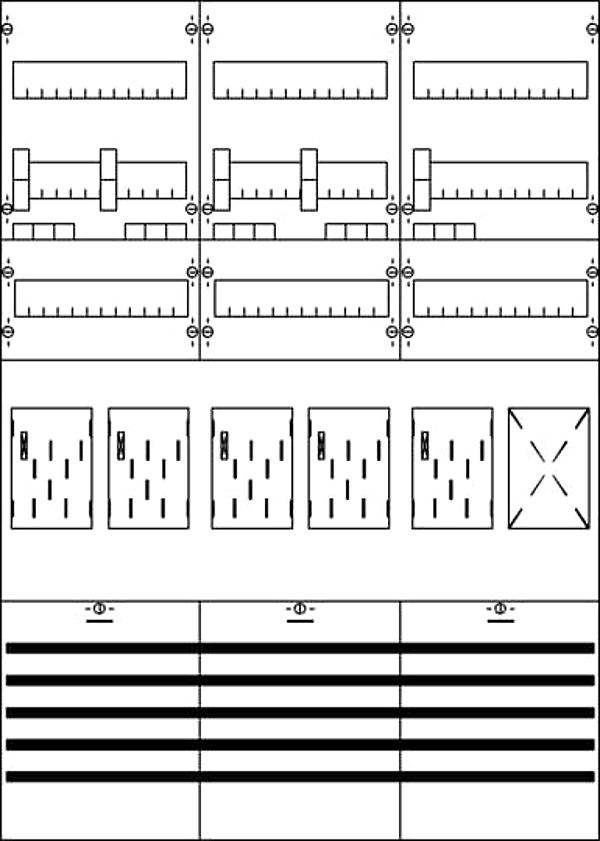

Meter panel, suitable for series: ComfortLine A and ComfortLine AD, fully assembled module, with BKE-I, rated current 63 A, dimensions in mm (H x W x D): 1050 x 750 x 160, Metering module pre-wired, Earthing system TN-S, also suitable for TT-System, 5-pole, Stecktechnik, net side compartment, meter space: with busbar, pre-assembled for main switch SH, net side compartment, SG space: with busbar, system side compartment, meter space: with Main branch terminal, compartment for additional devices of eHZ 150 mm, Number of meter spaces single tariff 5, Number of reserve spaces 1, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, 90 degree press and turn closure, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617341994 |
Weight: | 21.18 kg |
Length: | 1.06 m |
Width: | 0.75 m |
Height: | 0.14 m |
