2CPX033216R9999
KA4613

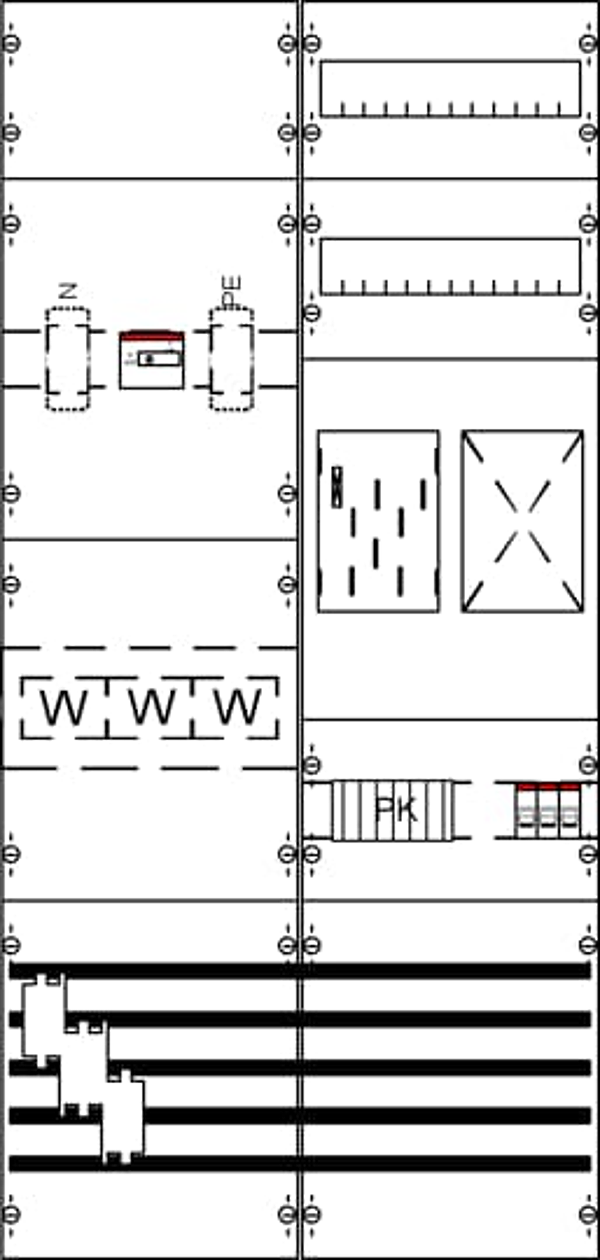

KA4613 CT Meter Board OH3
Measurement and metering transformer board, fully assembled module, with BKE-I, for the internal use, applicable standards: EN 61439-1, EN 61439-2, EN 61439-3, rated current 125 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Stecktechnik, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 50 qmm, Note: E DIN VDE 0603-2-2, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617332169 |
Weight: | 16.86 kg |
Length: | 1.06 m |
Width: | 0.50 m |
Height: | 0.14 m |
