KA4237 Meterboard for Transformer

Description

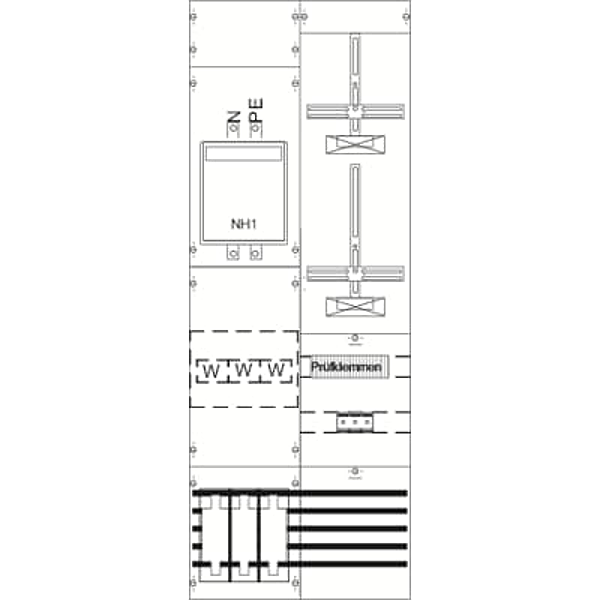

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, Test terminals are included according wish DSO, Secundary wiringset till test terminal and fuse switch disconnector D01, voltage path Fuse switch disconnector D02/3-pole complete with fuseholder D01, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, Connection N+PE (M8), Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals to ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
