ABB 2CPX031430R9999

AI10N

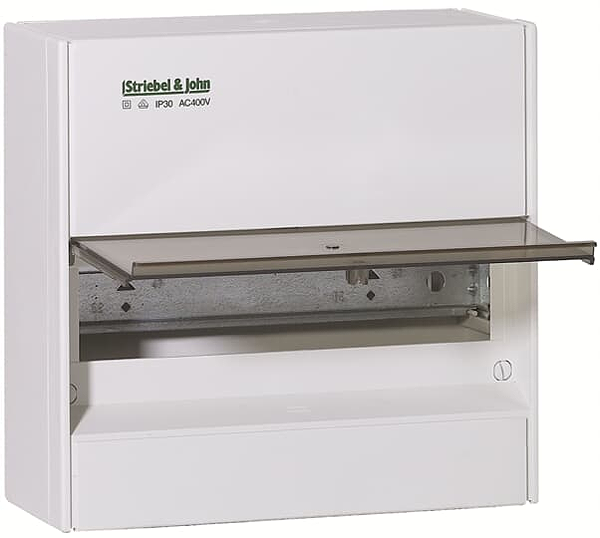

AI10N Distribution Board AP 1R 1

Description

Modular consumer unit, series AI, for the internal use, with coverplates, class of protection II (double insulated), degree of protection IP30, rated current 63 A, in RAL 9016, enclosure out of thermoplast, transparent flap, in RAL RAUCH, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, dimensions in mm (H x W x D): 240 x 250 x 95, 1-rows, Space units 12, Row distance in mm: 150, Assembled with adjustable DIN-rail
