1SVR730100R3300
CT-ERS.22S

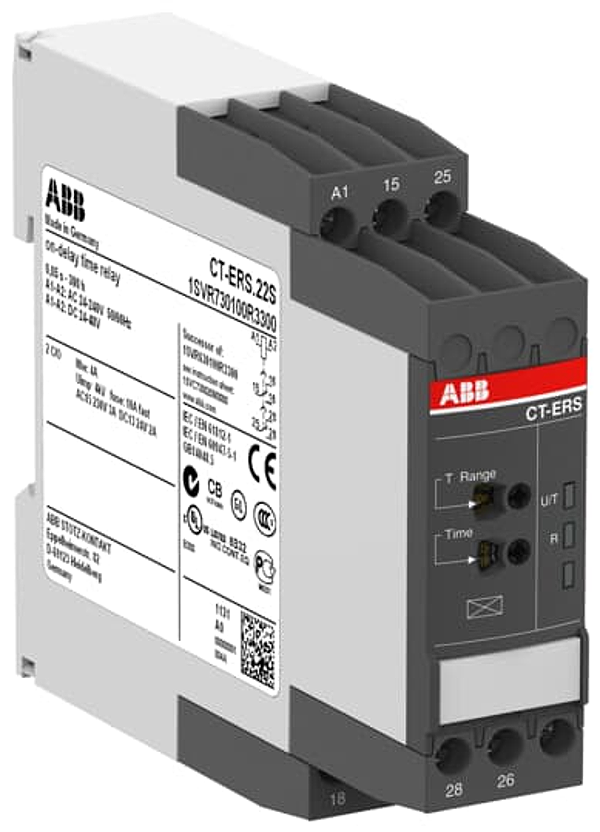

CT-ERS.22S Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC
The CT-ERS.22S is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay (delay on make) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.12 kg |
Length: | 0.1037 m |
Width: | 0.0225 m |
Height: | 0.0856 m |
