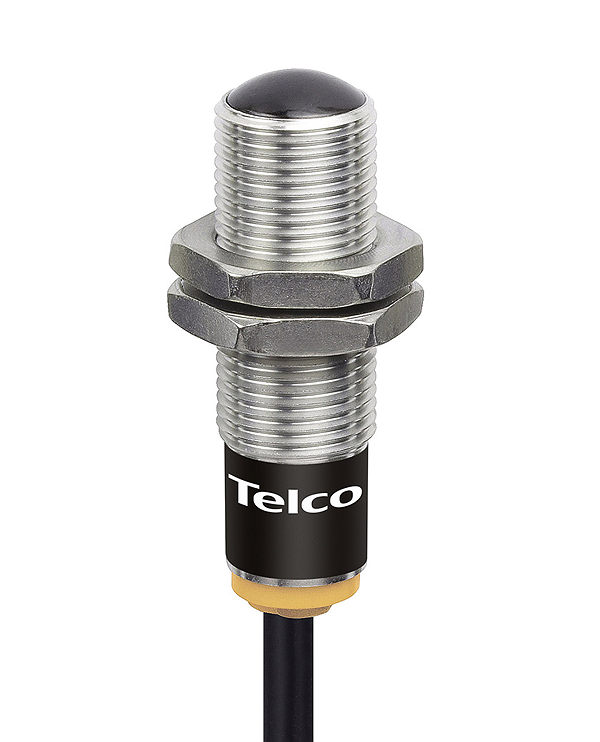

8851
LR-100L-TS38-15
Function: | Transmitter |
Sensing Range: | Up to 18 m |
Indicators: | None |
Optical Angle: | +/- 6° (emission) |
Housing: | M12 x 1 |
Housing Material: | Stainless Steel |
Connection: | 15 m cable |
Function: | Receiver |
Sensing Range: | Up to 18 m |
Indicators: | Yes |
Optical Angle: | +/- 7° (opening) |
Housing: | M12 x 1 |
Housing Material: | Stainless Steel |
Connection: | 15 m cable |
Photo Transistor: | Silicon NPN |
Power On Indicator: | Green LED |
Housing Material, Front Lens: | Polycarbonate |
Housing Material, Sensor Housing: | Stainless Steel (AISI 316) |
Cable: | 2 x 0,25 mm² |
Cable Sleeve: | PVC Ø 4,0 mm |
Min. Cable Bending Radius: | 45 mm |
Vibration: | 10 – 55 Hz, 0,5 mm |
Shock: | 30 g |
Operation Temperature: | – 25 to +65 °C |
Storage Temperature: | – 40 to +80 °C |
Sealing Class: | IP 67 |
Light Immunity 20˚: | > 80 000 lux |
ECCN: | |
Ursprungsland: | |
EAN: | |
Gewicht: | 0,00 kg |
Länge: | 0,00 m |
Breite: | 0,00 m |
Höhe: | 0,00 m |
