6573

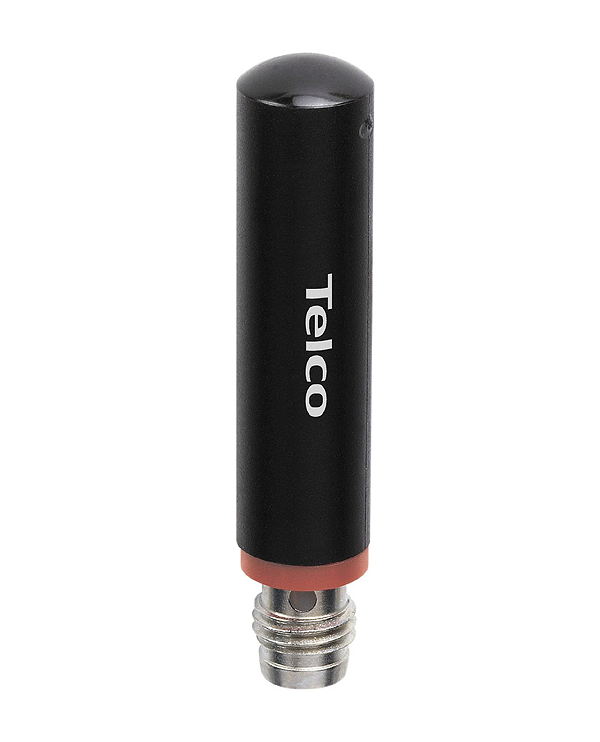

SMT 3000C AP T3
Operation Mode: | Thru Beam |
Function: | Receiver |
Supply Voltage: | 10 - 30 V dc |
Sensing Range: | 6 m |
Output: | PNP |
Output Status: | N.C. |
Housing: | Ø10 |
Housing Material: | Plastic |
Connection: | 3 pin, M8 plug |
Operation Mode: | Thru Beam |
Function: | Receiver |
Supply Voltage: | 10 - 30 V dc |
Sensing Range: | 6 m |
Output: | PNP |
Output Status: | N.O. |
Housing: | Ø10 |
Housing Material: | Plastic |
Connection: | 3 pin, M8 plug |
Operation Mode: | Thru Beam |
Function: | Receiver |
Supply Voltage: | 10 - 30 V dc |
Sensing Range: | 6 m |
Output: | NPN |
Output Status: | N.C. |
Housing: | Ø10 |
Housing Material: | Plastic |
Connection: | 3 pin, M8 plug |
Operation Mode: | Thru Beam |
Function: | Receiver |
Supply Voltage: | 10 - 30 V dc |
Sensing Range: | 6 m |
Output: | NPN |
Output Status: | N.O. |
Housing: | Ø10 |
Housing Material: | Plastic |
Connection: | 3 pin, M8 plug |
Operation Mode: | Thru Beam |
Function: | Transmitter |
Supply Voltage: | 10 - 30 V dc |
Light Source: | Infrared (880 nm) |
Control Feature: | Adjustable range and test input |
Sensing Range: | 6 m |
Housing: | Ø10 |
Housing Material: | Plastic |
Connection: | 3 pin, M8 plug |
Supply Voltage: | 10 - 30 V dc |
Voltage Ripple: | 15 % |
Reverse Polarity Protected: | Yes |
Current Consumption: | Max. 30 mA |
Test Input: | Yes |
Control Input: | Adjustable range |
Power On Indicator: | Green LED |
Light Source: | Infrared (880 nm) |
Emission Angle: | +/- 10° |
Housing Material, Front Lens: | Polycarbonate |
Housing Material, Sensor Housing: | Polycarbonate |
Cable: | 3 x 0,14 mm² |
Cable Sleeve: | PVC Ø 3,4 mm |
Vibration: | 10 - 55 Hz, 0,5 mm |
Shock: | 30 g |
Operation Temperature: | -20 to +50 °C |
Storage Temperature: | -40 to +80 °C |
Sealing Class: | IP 67 |
