Produkt
Telco
14980
SSR 02-198-096-20-H-AC2-DP2-0.5-J12
Anfrage senden

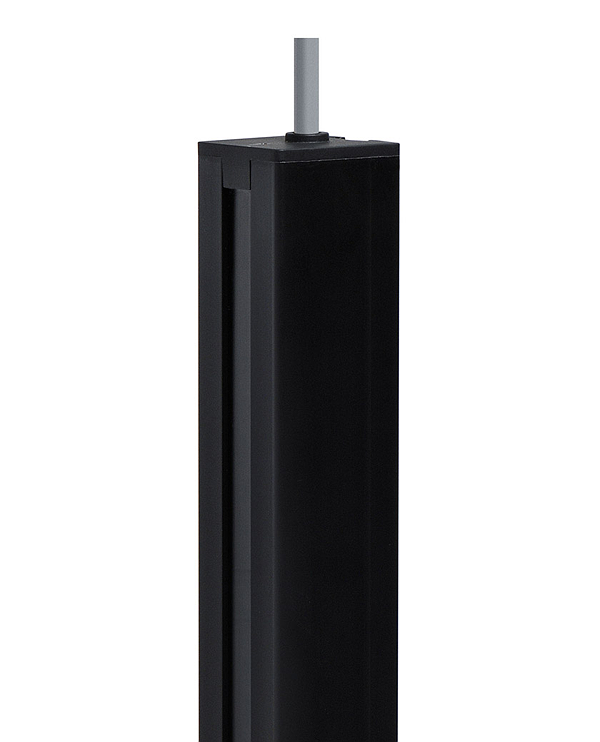

Urheberrecht Bild: Telco
Telco 14980
SSR 02-198-096-20-H-AC2-DP2-0.5-J12
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Technische Daten
| Operation Mode: | Thru Beam |
| Function: | Transmitter |
| Supply Voltage: | 18 - 30 V dc |
| Active Height: | 1905 mm |
| Channel Spacing: | 20 mm |
| Sensing Range: | 10 m |
| Housing: | 33 x 36 mm |
| Length: | 1980 mm |
| Connection: | 0.5 m cable with 5 pin, M12 plug |
| Operation Mode: | Thru Beam |
| Function: | Receiver |
| Supply Voltage: | 18 - 30 V dc |
| Active Height: | 1905 mm |
| Channel Spacing: | 20 mm |
| Sensing Range: | 10 m |
| Output: | 2 x PNP + Analog. |
| Output Status: | N.C. / N.O. |
| Housing: | 33 x 36 mm |
| Length: | 1980 mm |
| Connection: | 0.5 m cable with 12 pin, M12 plug |
| Features: | RS-485 communication port |
| Supply Voltage: | 18 - 30 V dc |
| Reverse Polarity Protected: | Yes |
| Short Circuit Protected: | Yes |
| Current Consumption: | 75 mA |
| Output Type: | 2 x Digital Output (Transistor) PNP Analogue Out. 4-20 mA / 0-10 V (2-wires) |
| Output Rating: | Digital Output: 100 mA Analogue Output: Current <600 Ohm - Voltage >1kOhm |
| Number of Channels: | 96 |
| Number of Cross Scanning Beams: | 286 |
| Number of Parallel Beams: | 96 |
| Distance, Beams Pinch Point: | 10 mm |
| Response Time: | Beams: Parallel 13,5 ms / Cross 36,3 ms |
| Power On Indicator: | Green LED |
| Output Indicator: | Yellow LED |
| System Status Indicator: | Red LED |
| Profile Dimensions (w x d): | 33 x 36 mm |
| Housing Material, Front Lens: | Polycarbonate |
| Housing Material, Profile: | Aluminium (black anodised) |
| Cable: | 12 x 0,2 mm² |
| Cable Sleeve: | PVC Ø 5,9 mm |
| Vibration: | 10 - 55 Hz, 0,5 mm |
| Shock: | 30 g |
| Operation Temperature: | -30 to +60 °C |
| Storage Temperature: | -40 to +80 °C |
| Sealing Class: | IP 67 |
| Light Immunity 5˚: | > 100 000 lux |
