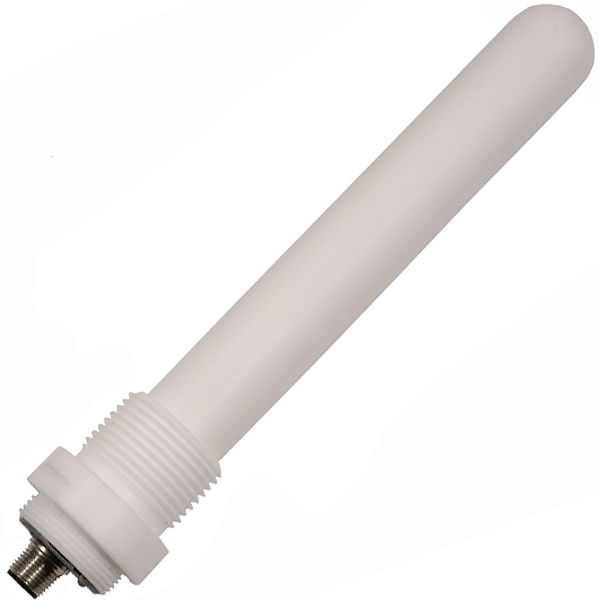

Rechner Sensors KA0687
KAS-80-26/200-A-G1-PTFE-100C-Y5-1-HP
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Capacitive Sensors S26. Series 80 – PNP. Type of construction G 1”. Housing material: PTFE. Useable for an ambient temperature up to +100 °C. Special version with flange. Sealing can be made with, a gasket or PTFE-tape (not delivered with the sensor). With flange connector M 12 x 1. Whitworth G 1 inch. G1″. G = Whitworth Pipe Thread (BSP – British Standard Pipe). Cylindrical shape, EN ISO 228-1. Parallel internal and external threads. Cylindrical – metallic non sealing.
Downloads
Technische Daten
| Thread / Process connection: | G 1" |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | PTFE (FDA 21 CFR 177.1550) |
| Housing material lid: | PA |
| Electrical version: | 4-Polig DC |
| Operating current (Ie): | 2 x 0…200 mA |
| Voltage drop max. (Ud): | ≤ 2 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 50 Hz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 (mit versiegelter Potentiometerschraube) |
| Norm: | EN 60947-5-2 |
| Media optimized: | JA |
| Quattro Protect: | JA |
| Sensing dinstance Sn: | produktberuehrend-mediumabhaengig-einstellbar |
| Operating distance min. / max. adjustable: | 0…15 mm |
| Operating voltage: | 10…35 V DC |
| Permitted ambient temperature min.: | -25 °C |
| Permitted ambient temperature max.: | +100 °C |
| CIP / SIP: | CIP / SIP 121°C |
| Installation: | Nichtbündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Connection: | Steckerflansch M 12 x 1 |
| CE: | JA |
| RoHS: | JA |
| UL CSA certification: | JA |
| MTTF: | 1199 Jahre |
| WHG certification: | Auf Anfrage |
