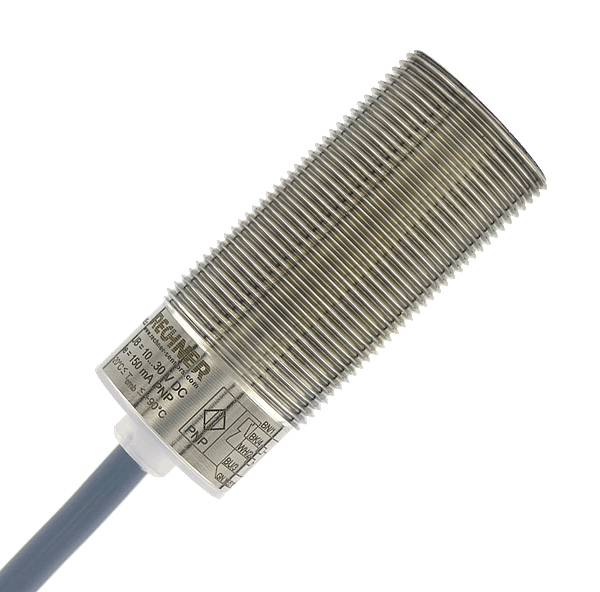

Urheberrecht Bild: Rechner Sensors
Rechner Sensors IA0269
IAS-10-A14-A-PTFE/VA-StEx, ATEX, 10 m
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Inductive Sensors with ATEX Certificate. Inductive sensors for use in areas with risk of explosion: ATEX Zone 20 (Dust) and 1 (Gas). Both variants are available for flush and non-flush mounting in metal. All-in-One – with PNP switching output. No additional Ex-Barrier required
Downloads
Technische Daten
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PTFE (FDA 21 CFR 177.1550) |
| Housing material: | Edelstahl Nr. 1.4305 |
| Housing material lid: | PC (FDA 21 CFR 177.1580) |
| Electrical version: | 4-Leiter DC |
| Operating current (Ie): | 2 x 0…150 mA |
| Voltage drop max. (Ud): | ≤ 2,5 V |
| Permitted residual ripple max.: | 10% |
| Noload current (Io): | Typ. 15 mA |
| Frequency of operating cycles max.: | 1 kHz |
| LEDdisplay: | Grün / Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-2 |
| Sensing dinstance Sn: | 10 mm |
| Operating voltage: | 10…30 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +90 °C |
| Installation: | Bündig |
| Output function: | Antivalent (S + Ö) |
| Output signal: | PNP |
| Cable length: | 10 m |
| Connection: | PVC-Kabel, 5 x 0,34 mm² |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking dust: | Ex II 1/2 D Ex ta/tb Ex IIIC T101°C Da/Db |
| ATEX product marking gas: | Ex II 2G Ex mb Ex IIC T4 Gb |
| Certified Zones ATEX: | 2G1/2D |
| IECEX product marking dust: | Ex ta/tb IIIC T101°C Da/Db |
| IECEX product marking gas: | Ex mb IIC T4 Gb |
| MTTF: | 1218 Jahre |
| WHG certification: | Auf Anfrage |
