Produkt
Rechner Sensors
IA0170
Anfrage senden
Urheberrecht Bild: Rechner Sensors

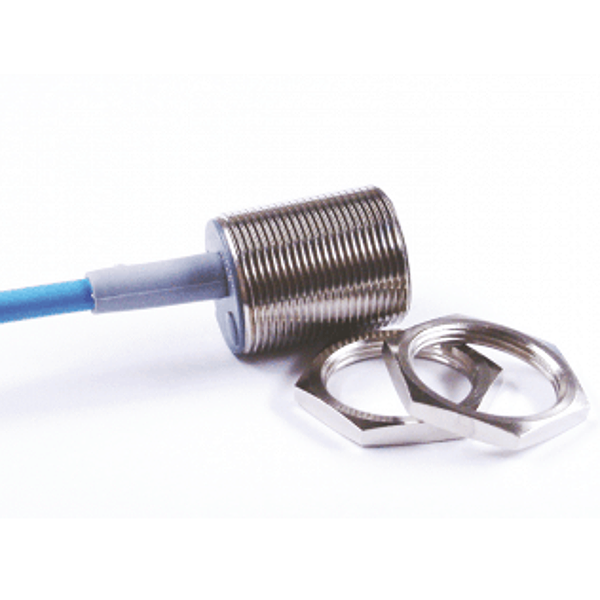

Rechner Sensors IA0170
IAS-30-A14-N, ATEX, 30 m
Auf Anfrage. Bitte senden Sie uns eine E-Mail, um den Preis und die Verfügbarkeit anzufragen.
"ucnguBrctvdgcxgt0eqo"
Beschreibung
Inductive Sensors. Series 30 – NAMUR EN 60947-5-6. Housing M 30 x 1.5. Housing material: Brass. For use in areas with the risk of gas explosion, zone 0. Sensing distance Sn = 10 mm
Downloads
Technische Daten
| Thread / Process connection: | M 30 x 1,5 |
| Housing material active surface: | PVC |
| Housing material: | Messing |
| Housing material lid: | PA |
| Electrical version: | 2-Leiter DC |
| Permitted residual ripple max.: | 5% |
| LEDdisplay: | Gelb |
| Protective circuit: | Eingebaut |
| Degree of protection IEC 60529: | IP 67 |
| Norm: | EN 60947-5-6 |
| Selfinductance (L): | 2 mH |
| Selfcapacitance (C): | 250 nF |
| Operating current active surface free: | > typ. 2 mA |
| Operating current active surface covered: | < typ. 1,5 mA |
| Sensing dinstance Sn: | 10 mm |
| Operating voltage: | 5…15 V DC, Ui = 15 V DC |
| Permitted ambient temperature min.: | -20 °C |
| Permitted ambient temperature max.: | +70 °C |
| Installation: | Bündig |
| Output function: | NAMUR |
| Cable length: | 30 m |
| Connection: | PUR-Kabel, 2 x 0,75 mm² |
| CE: | JA |
| RoHS: | JA |
| ATEX product marking gas: | Ex II 1G Ex ia Ex IIC T1 – T6 Ga |
| Certified Zones ATEX: | 1G |
| IECEX product marking gas: | Ex ia IIC T1 – T6 Ga |
| MTTF: | 3664,46 Jahre |
| WHG certification: | Auf Anfrage |
Logistische Daten
| ECCN: | |
| Ursprungsland: | |
| EAN: | |
| Gewicht: | 0,00 kg |
| Länge: | 0,00 m |
| Breite: | 0,00 m |
| Höhe: | 0,00 m |
