YBB-30S2-1700-G012
630-200-025

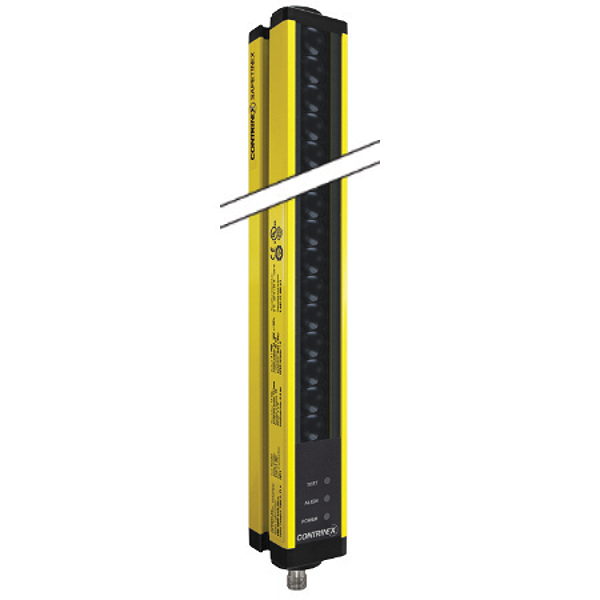

Product type: | Light curtain |
Safety level: | Cat. 2, PL c, Type 2 |
Housing size [mm]: | 42 x 48 |
Resolution: | 30 mm (hand) |
Protective height: | 1698 mm |
Total height: | 1799 mm |
Operating range: | 0.25...12 mm |
Polarity: | PNP |
Response time: | 62 ms |
Supply voltage: | 24 VDC ± 20 % |
Temperature range: | 0...50 °C |
Enclosure rating (IP): | IP 65, IP 67 |
Sender wavelength: | IR 850 nm |
ECCN: | |
Ursprungsland: | |
EAN: | |
Gewicht: | 0,00 kg |
Länge: | 0,00 m |
Breite: | 0,00 m |
Höhe: | 0,00 m |
